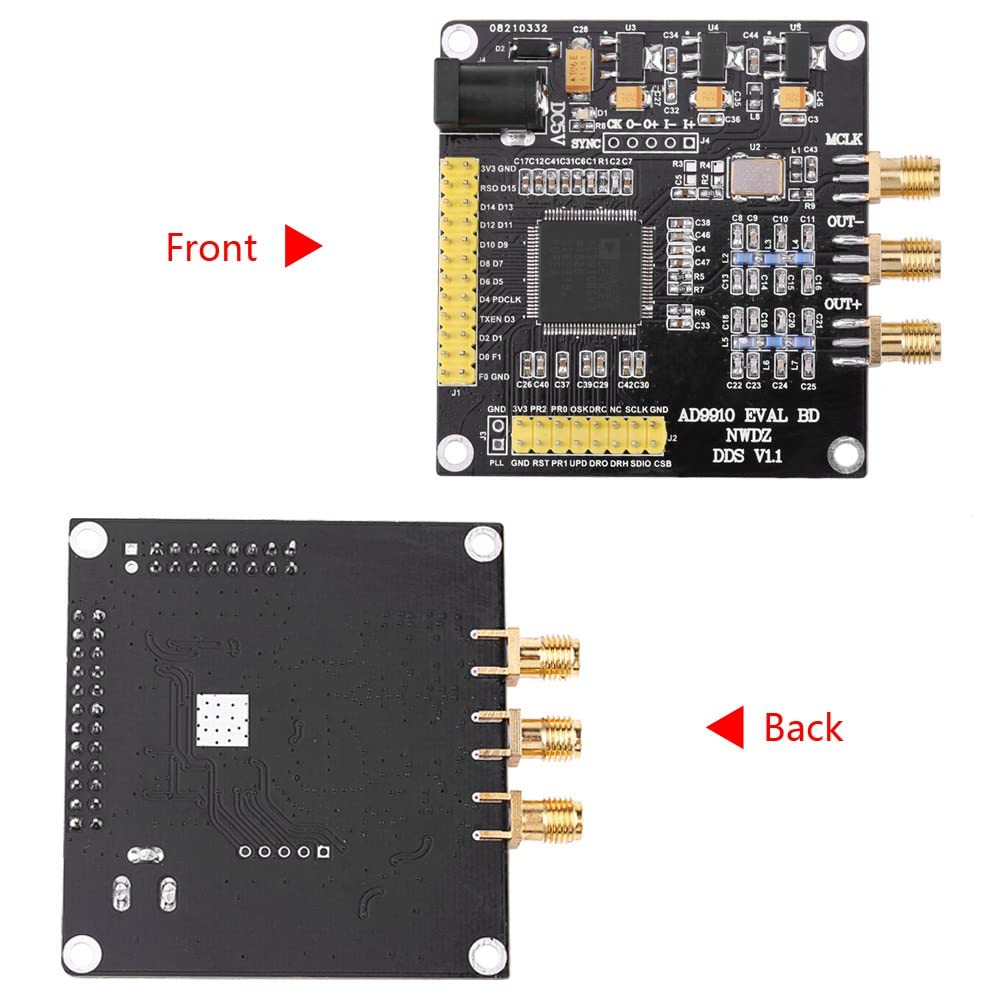

Eujgoov AD9910 DDS Module 1GSPS Sampling Rate Frequency Signal Generator Automatic Scanning 8 Modulation Modes

Characteristic: 1 ​ internal clock speed (up to 400 MHz analog output) Integrated 1 ​, 14-bit DAC 32-bit tuning word Phase noise ≤ -125 dBc/Hz @ 1 kHz offset (400 MHz carrier) Excellent dynamic performance with >80 dB narrow-band ​ Serial input/output (I/O) control Automatic linear or arbitrary frequency, phase, and amplitude sweep capability 8 frequency and phase offset profiles Software and hardware controlled power-down 100-​k>lead​ TQFP_EP package Integrated 1024 word x 32-bit RAM Phase locking loop REFCLK multiplier Parallel ​ interface Internal oscillator, can be driven by a single crystal Phase modulation capability Amplitude modulation capability ​ synchronization Applications: Agile local oscillator (LO) frequency synthesis Programmable clock generator FM chirp source for ​ and scanning systems Test and measurement equipment Acoustic-optic device drivers ​​ modulator Fast frequency hopping Specifications: Power supply: [email protected] Size: 62 x 58mm/2.44 x 2.28inch Weight: 40g Package Included: 1 x AD9910 DDS Module 1 x USB cable

• [Powerful Control] : The ad9910 module completely controls io external connections, ideal for comprehensive functionality and secondary development.
• [Easy to Use] : Comes with a demo program based on for simple ad9910 control and seamless integration.
• [Premium Output] : Utilizes an official low pass filter for smooth and precise signal output.
• [High Performance] : Boasts 1 internal clock speed, 14-bit dac, and exceptional dynamic performance for reliable operation in various applications.
• [Versatile Functions] : Features automatic linear frequency/phase/amplitude scanning, 8 modulation modes, and single frequency adjustment for flexibility.
